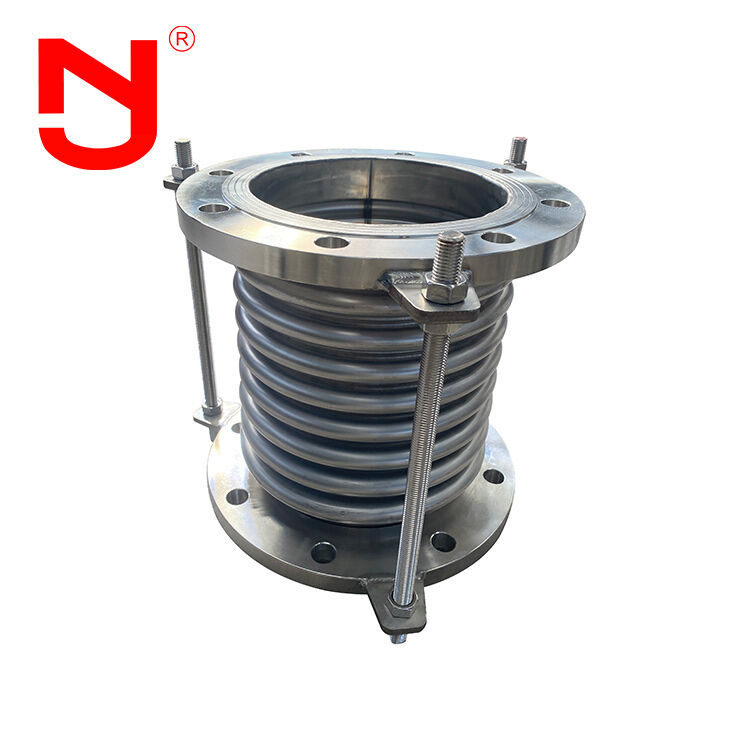

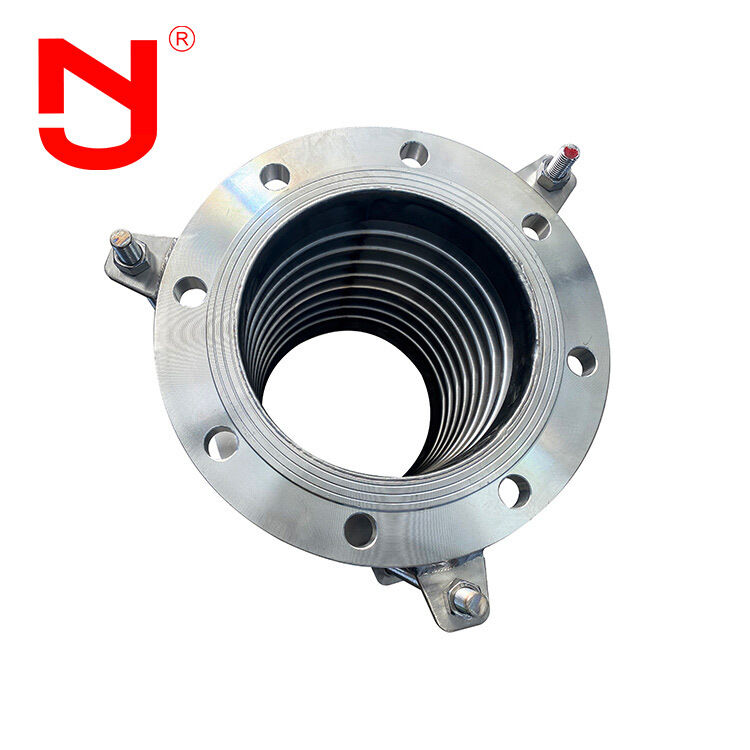

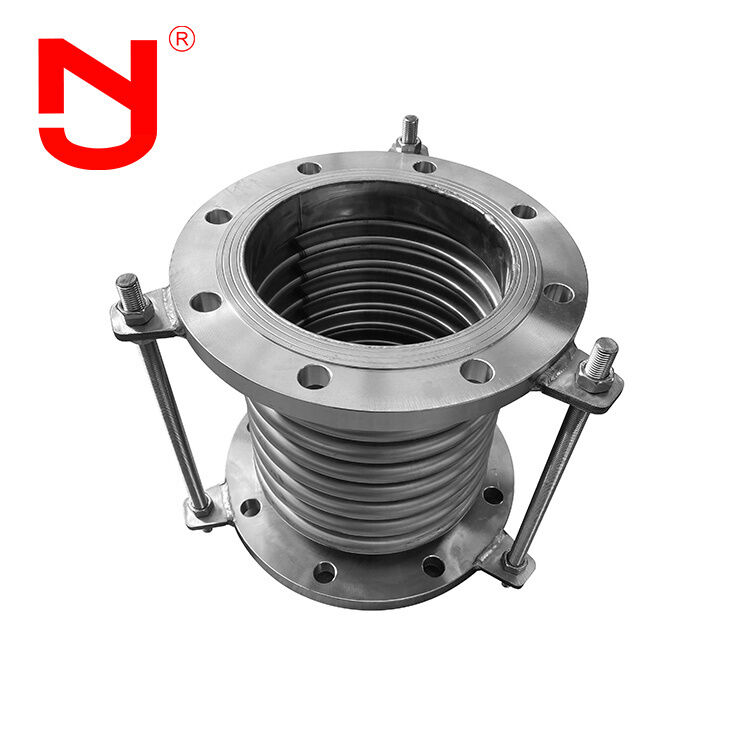

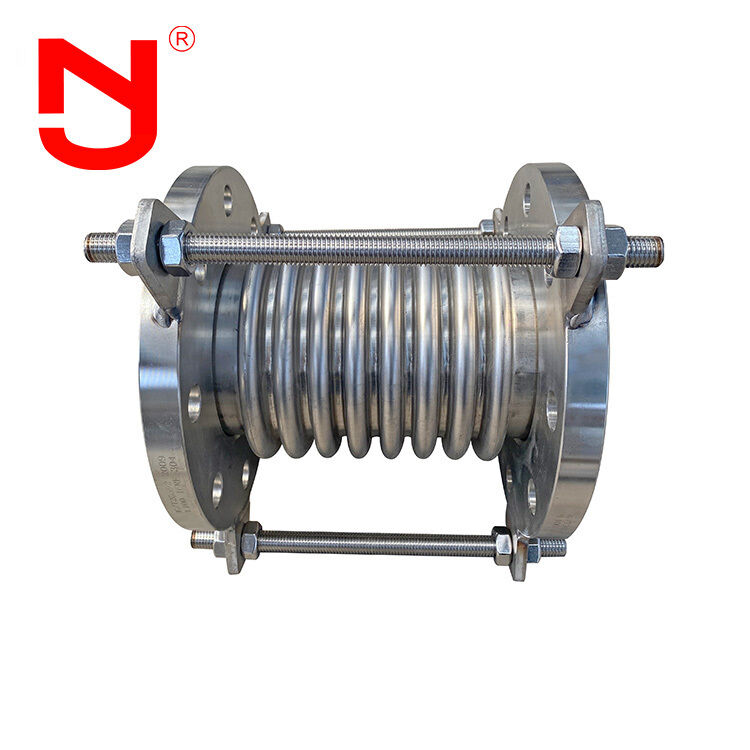

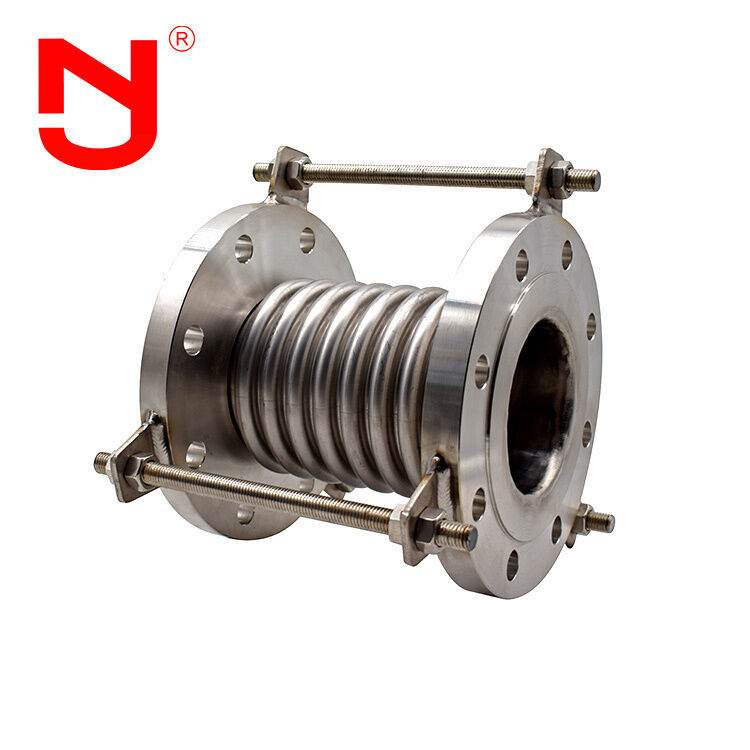

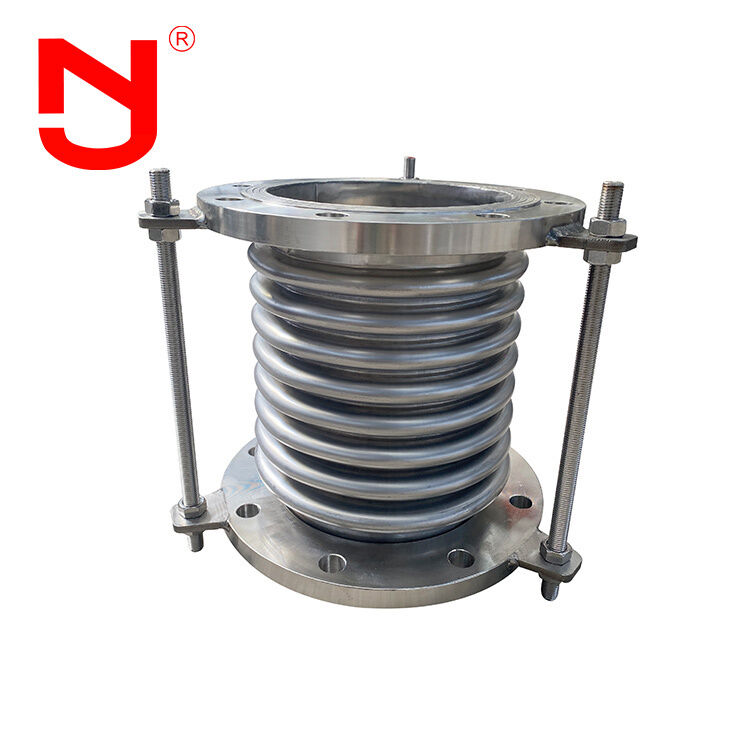

Corrosion Resistant SS316 Exhaust Expansion Joint with Vibration Resistance and Thermal Expansion Compensation

Corrosion Resistant Exhaust Expansion Joint

Vibration Resistance Metal Expansion Joint

Thermal Expansion Compensation Steam Expansion Joint

Τόπος καταγωγής:

Κίνα

Μάρκα:

JINGNING

Πιστοποίηση:

CE、ZTC

Αριθμό μοντέλου:

JDZ

Επικοινωνήστε μαζί μας

Ζητήστε μια προσφορά

Λεπτομέρειες προϊόντων

Λέξεις-κλειδιά:

Αρμός διαστολής εξάτμισης

Όνομα προϊόντος:

Ελαστικοί Σύνδεσμοι Steam SS316 Αντοχή σε Υψηλές Θερμοκρασίες

Υλικό φυσητήρων:

SS304, SS316

OEM & ODM:

Διαθέσιμος

Πρότυπο φλάντζας:

ANSI, DIN, BS, ΌΠΩΣ, JIS

Στάβλοι για γραβάτες:

Χάλυβα άνθρακα,SS304,SS316

Δείγμα:

Διαθέσιμος

Σύνδεση:

Φλάντζα

Όροι πληρωμής & ναυτιλίας

Ποσότητα παραγγελίας min

Τιμή

$9.3~90.3/pc

Συσκευασία λεπτομέρειες

ξύλινη θήκη

Χρόνος παράδοσης

5-8 εργάσιμες

Όροι πληρωμής

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Δυνατότητα προσφοράς

10000 τεμ

ΣΧΕΤΙΚΑ ΠΡΟΪΟΝΤΑ

Thermal Expansion Joint Bellow Compensator with Multi-Layer Bellows for Industrial Pipeline in Carbon Steel with 17 Years Manufacturing Experience

Πάρτε την καλύτερη τιμή

Βίντεο

Corrosion Resistant SS316 Exhaust Expansion Joint with Vibration Resistance and Thermal Expansion Compensation

Πάρτε την καλύτερη τιμή

Βίντεο

SS316 Metal Expansion Joint with High Temperature Resistance and Flange Standard DIN/ANSI/JIS/BS for Industrial Applications

Πάρτε την καλύτερη τιμή

Βίντεο

SS316 Metal Expansion Joint with Thermal Expansion Compensation and Axial Movement for Industrial Applications

Πάρτε την καλύτερη τιμή

Επικοινωνήστε μαζί μας

86-150-93112546

joints@chnflex.com

Επικοινωνήστε τώρα

Περιγραφή του προϊόντος

Exhaust Expansion Joint SS316 High Temperature Resistance

This SS316 exhaust expansion joint is specially designed for high-temperature exhaust systems, providing reliable compensation for thermal expansion, vibration, and slight misalignment. Manufactured from heat-resistant stainless steel 316, it offers excellent corrosion resistance, durability, and stable performance under continuous high-temperature conditions. It helps reduce stress on piping, improves system safety, and extends the service life of exhaust ducts in industrial, automotive, and power-generation applications.

Performance of Exhaust Expansion Joint

Good compensation effect
High temperature resistance
Metal dust boot can reduce leakage
Vibration resistance and high-speed performance
The specific pressure of the spring can be reduced
Possible torque transmission
Through certain structural design, the sealing failure caused by scaling can be reduced

Technique Parameter of Exhaust Expansion Joint

Main data of Steam expansion joints

Diameter (mm)	Pressure grade (Mpa) 1.0	Pressure grade (Mpa) 1.6	Pressure grade (Mpa) 2.5	Available Area of Bellows (c㎡)	Max Size of External Diameter (mm)	Length (mm)
32	20/26	18/63	15/98	16	225	160/250
40	20/24	18/89	15/98	23	244	164/259
50	20/70	18/70	15/106	37	259	172/276
65	26/44	22/55	15/138	55	270	215/294
80	34/33	28/41	19/68	81	284	240/338
100	40/75	35/93	25/54	121	304	235/317
125	38/59	34/74	29/117	180	334	282/314
150	40/62	34/78	29/92	257	364	282/339
200	59/52	53/58	46/65	479	442	340/402
250	87/35	79/39	48/78	769	507	393/459
300	87/37	79/41	71/47	1105	562	464/525
350	87/44	79/48	71/45	1307	622	509/564
400	87/43	79/47	71/47	1611	562	522/566
450	87/37	79/41	47/75	1972	700	403/498
500	87/68	79/75	71/45	2445	760	431/523
600	87/85	79/94	71/82	3534	835	478/548
700	87/77	79/85	71/103	4717	1110	490
800	102/102	94/112	71/95	5822	1265	502
900	102/97	94/107	80/123	7620	1186	/
1000	102/105	94/106	82/117	9043	1286	/

Production process of Exhaust Expansion Joint

Do you know how is a high quality Exhaust Expansion Joint made? Let's see with JINGNING.

Exhaust Expansion Joint can be processed into different types according to different needs:

Steam expansion joints Bellow Body: Stainless Steel 304, 316L
Steam expansion joints flange Materials: Q235 carbon steel, 304, 316L stainless steel

Jingning has more than 17 years of design experience in manufacturing metal bellows, rubber expansion joint, metal bellows joint, disassembly joint, pipeline and other industrial pipe fittings. The metal bellows meets the international standards such as GB, ISO, DIN, ANSI, BS, JIS and the special requirements of customers.

Exhaust Expansion Joint advantages

Metal bellows is ex factory price
17 years manufacturing experience, 5 years export experience
The metal bellows has strict quality inspection, and the quality far exceeds the industry standard
Various specifications of metal bellows mold base customization and OEM
Free metal bellows samples
Large inventory of metal bellows

Exhaust Expansion Joint application

Pipeline deformation and deformation with large deformation of metal bellows and limited space position
Large diameter pipeline with metal bellows has large deformation and displacement and low working pressure
Steam expansion joints require devices to limit nozzle load
Steam expansion joints are required to absorb or isolate high-frequency mechanical vibration
Steam expansion joints are pipes required to absorb earthquake or foundation settlement
